WagnerTuningHondaCivicTypeRFK8CompetitionIntercoolerKit

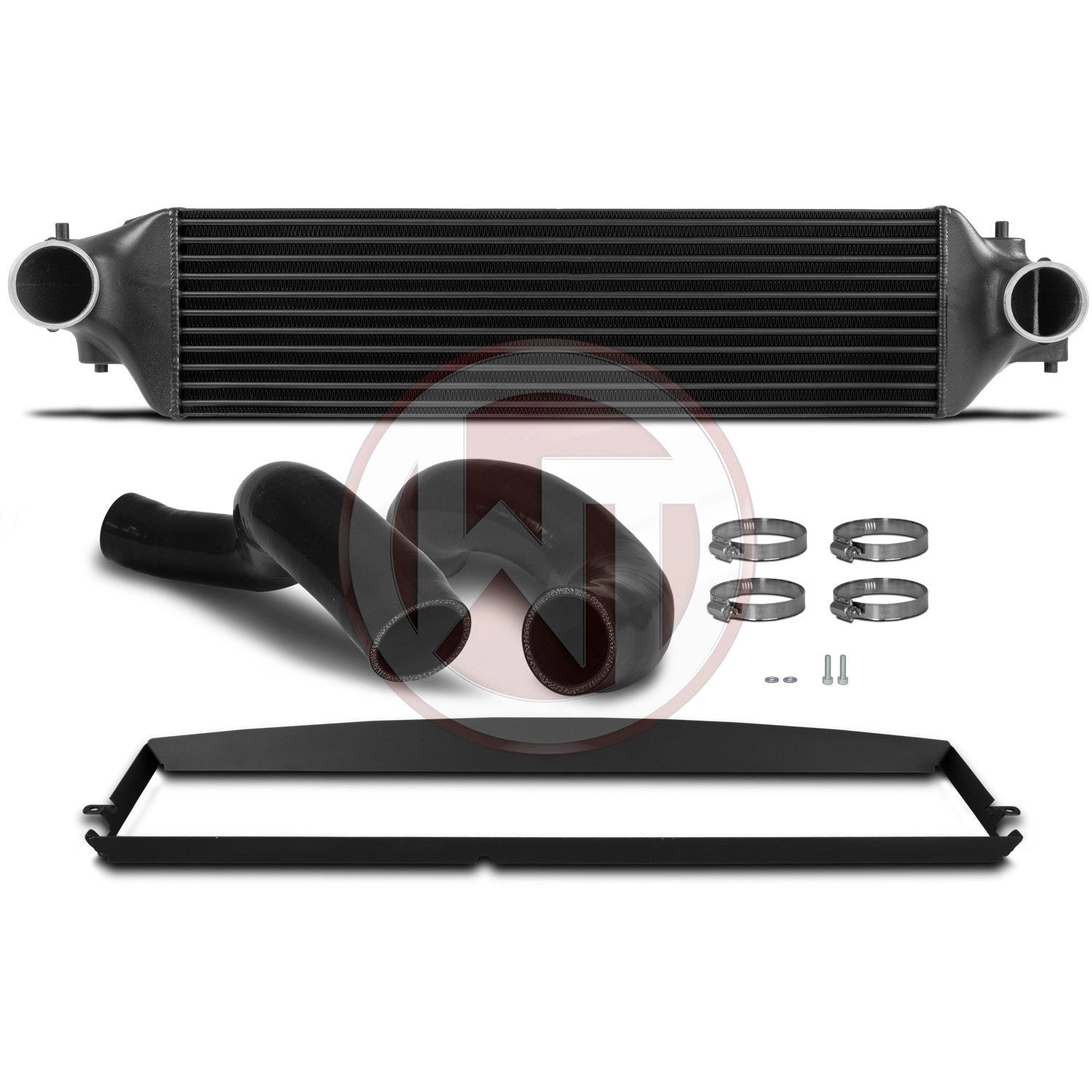

COMPETITION INTERCOOLER KIT HONDA CIVIC TYPE R FK8The WAGNERTUNING high-performance intercooler has got a new competition core(Tube Fin) with the dimensions 670 mm x 183,4 mm x 125 mm (15.4 liters)/26,38Inch x 7,22Inch x 4,92Inch (939,76Inch³), which was developed especiallyfor the requirements of the Honda Civic Type R FK8. This high-performance coreoffers an 23 % larger frontal surface and 140 % more core volume compared tothe stock intercooler.The aluminum cast endtanks were designed in CAD and optimized in CFDsimulations (for an ideal internal airflow). An incorporated air baffle insidethe intercooler inlet ensure a uniform filling of the intercooler. The resultis a excellent cooling property with a minimal back pressure. The newlydeveloped competition high-performance core is very light and provides theadjoining components (for example the watercooler) enough air flow by using aspecially prepared air baffle. That`s why this kit is perfect for racing use.An optimal cooling effect of the charged air with a significant increase inperformance!An anti-corrosion powder coating with perfect heat-conducting propertiesprotects the WAGNERTUNING intercooler from all environmental influences, so alasting and optimal cooling effect can be guaranteed. The installation is doneby replacing the original intercooler and is easy to perform (plug and play).All our products are subject to a continuous quality monitoring.Inlet diameter: 65 mm/2,56Inch ; Outlet diameter 70 mm/2,756InchDimensions stock intercooler:V = 6,4 L / 239,55Inch³A = 6403200 mm²/ 9 925 Inch²Dimensions WAGNERTUNING intercooler:V = 15,4 L / 939,76Inch³A = 15359750 mm²/ 23 808 Inch²kit comes with:1 intercooler1 air baffle2 silicone hoses (black)1 mounting material1 installation instruction
